Concealed toilet cisterns offer a clean, modern look — but when something goes wrong, they can feel like a mystery to access. Whether you’re facing a constantly running flush, a slow refill, or an overflowing hidden tank, it’s important to know how to safely get behind that flush plate without damaging anything.

At Pleasant Plumbers, we regularly help London homeowners with concealed toilet repairs. Here's our simple, step-by-step guide on how to access your concealed cistern, carry out basic maintenance, and when to call in the professionals.

A concealed cistern is a toilet tank that’s hidden behind a wall, tile panel, or inside a piece of furniture. All you’ll typically see is the flush plate or buttons. These systems are designed to save space and look sleek — but they can be tricky to access if you’re unfamiliar with how they’re built.

Tools Required:
Screwdriver (depending on your system), patience, and a steady hand.

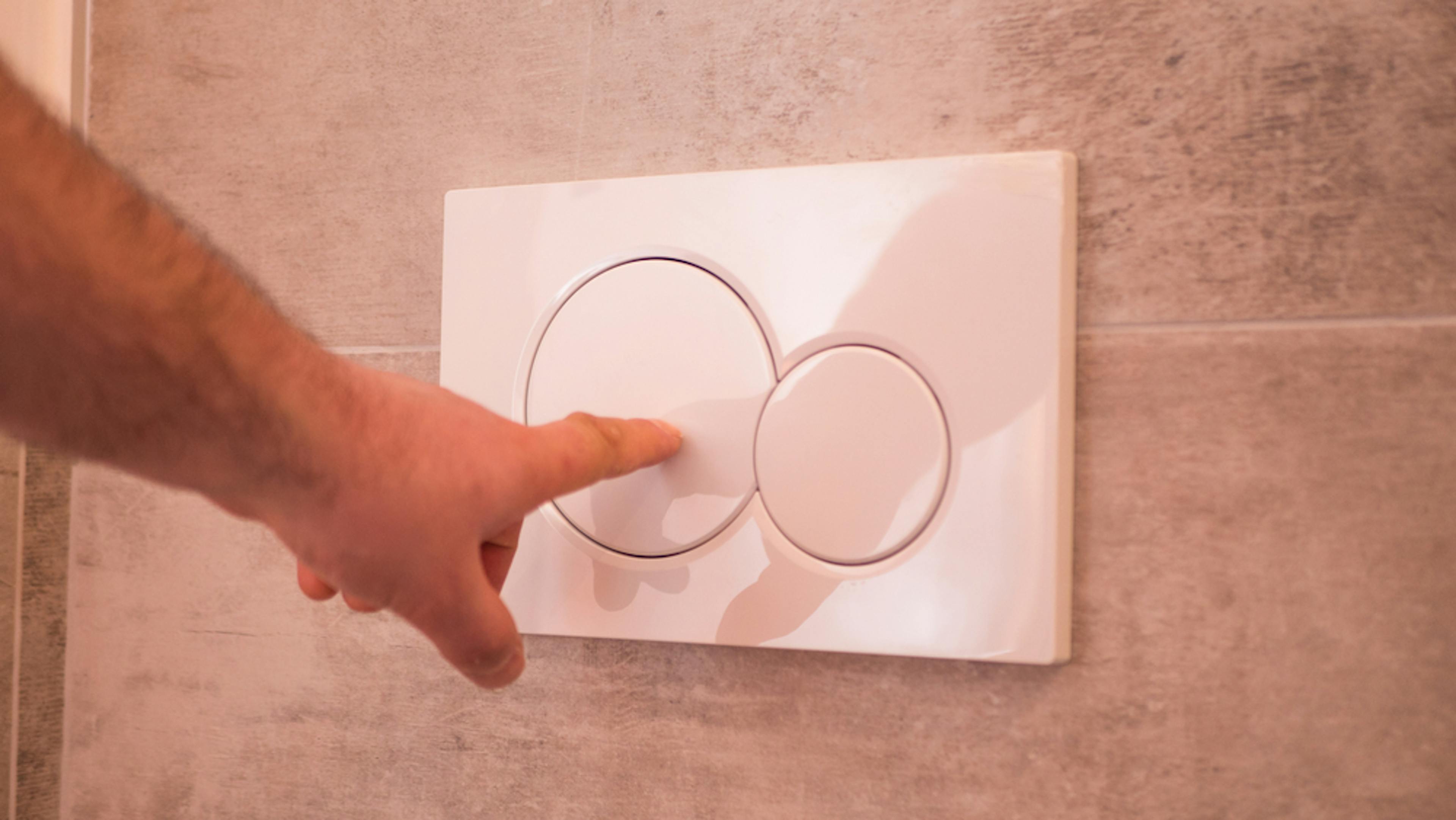

Step 1: Locate the push button flush plate.
Step 2: Gently remove the cover plate. If it’s flush-mounted, push the bottom while tilting the top edge forward. Carefully disconnect any air hoses if present.
Step 3: Remove the flushing rods in the middle of the frame. Twist them anti-clockwise and pull them back slowly.
Step 4: Unscrew any plastic bolts or fasteners to release the mounting frame.
Step 5: If your cistern has a debris plate (used to prevent foreign object ingress), gently unclip and remove it.
Step 6: Turn off the water supply at the isolation valve — usually marked with a blue, red, or yellow handle.
Step 7: Drain any remaining water from the cistern. Remove the siphon bracket mechanism by pressing the button at the bottom.
Step 8: Detach the water hose from the float valve. These often include an O-ring for easy removal — avoid overtightening.
Step 9: Release the float valve from its mounting by pressing the small lever behind it.
Step 10: Finally, remove the siphon unit by pressing the rear lever and gently twisting it out of position.

You now have full access to the internal components of your concealed cistern.

With the system open, now’s the time to carry out basic maintenance:

• Flush out debris from the cistern base using clean water.
• Check the rubber seal on the siphon — if it looks cracked or worn, it should be replaced.
• Clean the float valve and siphon components carefully using a soft cloth.
• If your toilet has a dual-flush system, ensure both buttons and rods engage correctly and aren’t misaligned.

If your push buttons aren’t working, check that the flushing rods are correctly sized. Some may need trimming to fit correctly.

Follow these steps in reverse to reassemble the unit:

1. Reinsert the siphon until it clicks into place.
2. Snap the float valve back onto its mount.
3. Reconnect the water hose to the float valve (tighten the O-ring gently).
4. Secure the siphon bracket.
5. Refit the debris plate.
6. Install and test the flushing rods.
7. Secure the mounting plate.
8. Reattach the flush panel.

Turn the water supply back on, test the flush, and check for leaks.

If you're unsure at any point, it’s always best to stop and call a qualified plumber. Concealed systems vary by brand and model — and some require special tools or proprietary fittings.

At Pleasant Plumbers, our engineers are trained in all major concealed cistern systems, from Geberit and Grohe to Ideal Standard and Vitra.

• If your inlet valve sticks, it may need replacing — especially in older models.
• Dual-flush systems help save water — great for both the planet and your bills.
• Use a small dab of washing-up liquid on pipework connections for easier reassembly.
• Always read the installation manual for your specific cistern.
